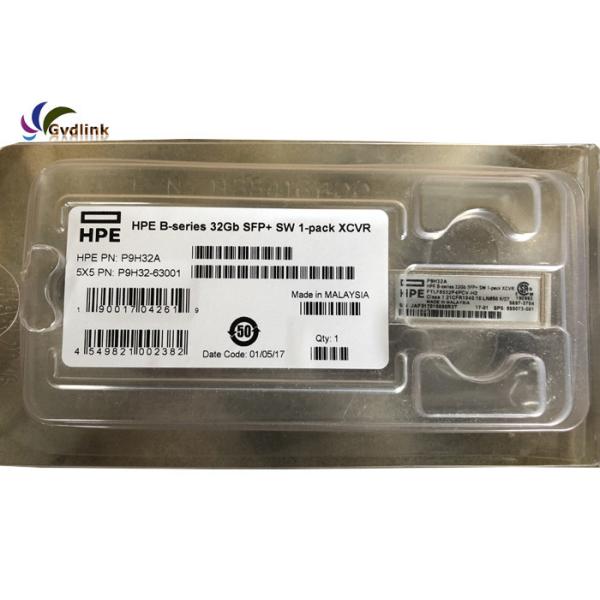

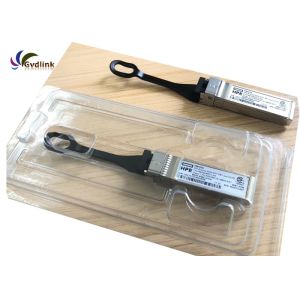

P9H32A Compatible 32G Fiber Channel SFP+ 850nm 100m DOM Transceiver
module
Features
● Supports up to 32Gbps bit rates
● Hot-pluggable SFP+ footprint
● 850nm VCSEL laser and PIN photodiode, Up to 100m for MMF
transmission
● Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
● Built-in digital diagnostic functions
● Single +3.3V power supply
● Metal enclosure,for lower EMI
● ROHS compliant and lead-free
● Operating Temperature: Standard 0~70ºC, Extended -10~85ºC,
Industrial -40~85ºC
Applications
● 4G/8G/16G/32G Fibre channel
Ordering information
| QK724A | 16G FC SFP+ LW transceiver SMF 1310nm 10km LC DOM 0~70ºC |
| QK725A | 16G FC SFP+ SW transceiver MMF 850nm 100m LC DOM 0~70ºC |
| P9H32A | 32G FC SFP+ SW transceiver MMF 850nm 100m LC DOM 0~70ºC |
Description
Gvdlink’s 32G SW is a small form factor pluggable SFP+ transceiver
module for 32G Fibre Channel (16GFC) long reach applications.
It supports links up to 100m over Multi-Mode fiber (MMF). This
module features a highly reliable 850nm VCSEL laser transmitter and
PIN photo-detector into a duplex LC optical connector. The 16G SFP+
LW is a multi-rated 1310nm . It complies with Small Form Factor
Pluggable Multi-Sourcing Agreement (MSA)
SFF-8431 Rev. 4.1 and SFF-8472 Rev. 11.0. It’s suitable for use
with SAN switches, routers, network interface cards (NICs) and
other storage networking equipment.
There are three versions of this series 32G Fibre Channel SFP+SW
transceiver for different applications. The
Standard grade (0~70ºC) is for commonly commercial application, the
Extended grade (-10~85ºC) is for Extended
temperature application, and the Industrial grade (-40~85ºC) is
made with robust and reliable components to meet the
needs of Industrial application under harsh environmental
conditions.
Our factory show case
Our quality control
Our product line show
FAQ
Q1.Can I have a sample order? What is your MOQ?
A2: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable,We do not have MOQ,1 sample is available.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and
also tested for compatibility on a variety of different brands of
network equipment
Q3. What are the trade terms?
A3: Lead Time: most popular optics in stock ,ready to ship. some of
higher-value and specialize optics have a short lead time.
Payment term: Western union, T/T, Aliexpress escow, money gram
,cash payment
Warranty: 3 year
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5.Could I use our own logo, label and package?
A5: Yes,we could provide a OEM service and according to your
requirements, design products label, logo, PN, SN, package.
